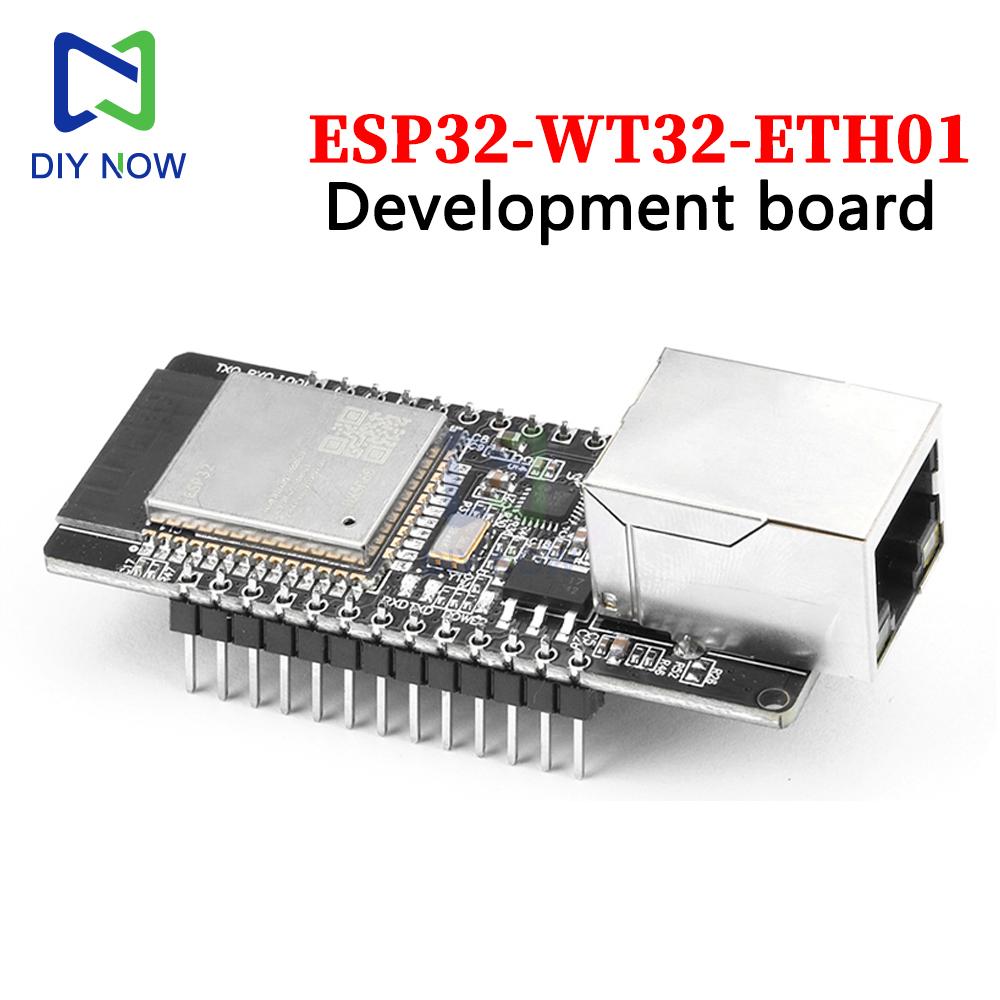

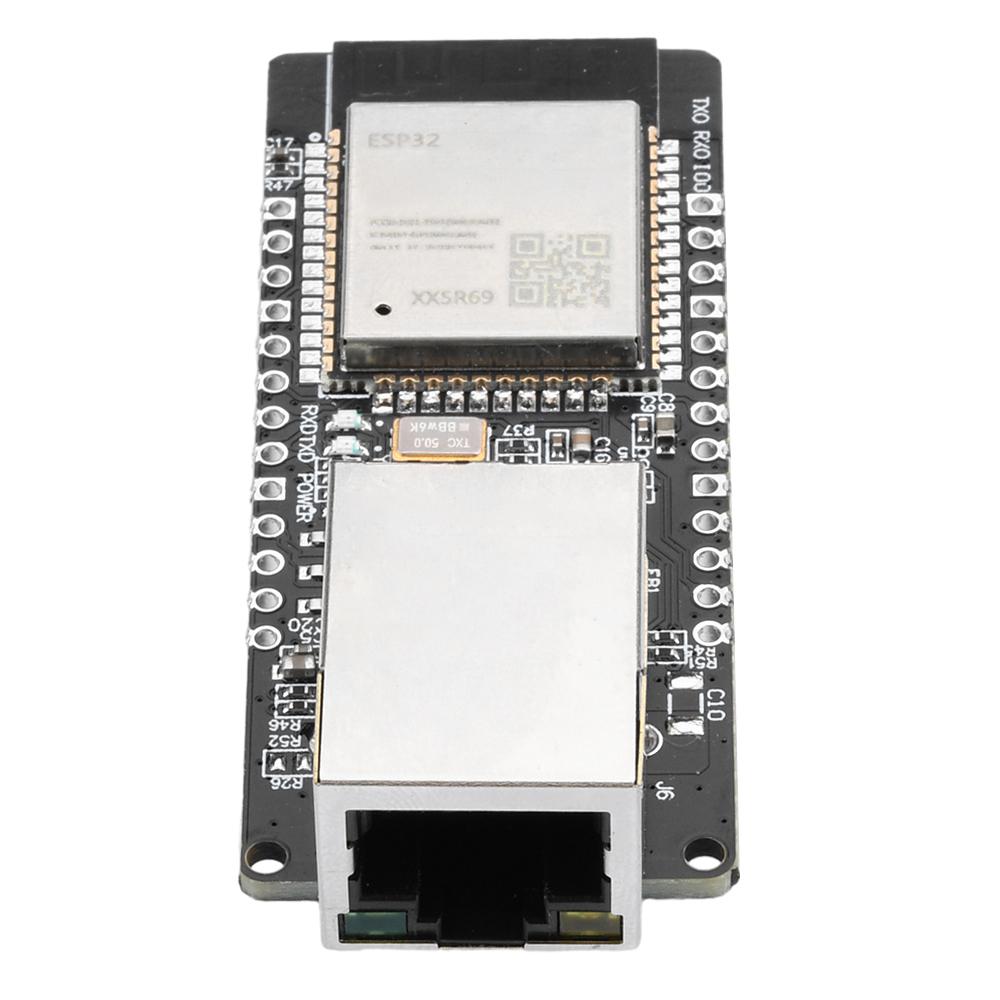

ESP ESP32-32 WT32-ETH01 Embedded Serial Port to Ethernet WiFi Bluetooth-compatible Wireless Development Board With Pin

High-concerned chemical : none Package : TQFP Supply Voltage : 5V 3V3 Application : Electric Toy Type : Module Brand Name : DIY NOW Operating Temperature : -40 to 85 Origin : Mainland China Condition : New

Features: 1.ESP32-ETHO1 is an embedded serial to Ethernet module based on the ESP32 series. 2. The module integrates an optimized TCP/IP protocol stack internally, making it easy for users to complete the networking function of embedded devices, greatly reducing development time and costs. 3. The module is compatible with half solder pads and connector through-hole designs, and the board width is universal. The module can be directly soldered onto the board, connectors can be soldered, and can also be used on breadboards, making it convenient for users to use in different scenarios. 4.The ESP32 series IC is a Soc that integrates 2.4GHz Wi Fi and Bluetooth dual-mode, with good functional performance. 5. The module has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.

Parameter: Wi Fi: Protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps; aggregation of A-MPDU and A-MSDU, supporting 0.4_s protection interval) Frequency range: 2.4~2.5 GHz

With Bluetooth: Protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards RF: NZIF receiver with -97 dBm sensitivity

Hardware: Ethernet port specifications: RJ45, 10/100Mbps, cross direct adaptive Serial baud rate: 80~5000000 On board Flash: 32Mbit Working voltage: 5V or 3.3V power supply (choose one) Working current: average 80mA Power supply current: minimum 500 mA Working temperature range: -40 ° C~+85 ° C

Software: Wi Fi mode: Station/SoftAP/SoftAP+Station/P2P Wi Fi security mechanism: WPA/WPA2/WPA2 Enterprise/WPS Encryption type: AES/RSA/ECC/SHA Firmware upgrade: remote OTA upgrade through network Software development: SDK for user secondary development Network protocols: IPv4, TCP/UDP IP acquisition methods: static IP, DHCP (default) Simple transparent transmission method: TCP Server/TCP Client/UDP Server/UDP Client User configuration: AT+instruction set Size: 63mm * 25mm * 16mm Power supply voltage: The power supply voltage of the module can be 5V or 3V3, and only one can be selected. Power supply mode: Users can freely choose according to their needs: 1) Through hole (welding pin): Using DuPont line connection for power supply; Using bread board connection for power supply; 2) Half solder pad (directly soldered onto the board): Powered by the user's board.

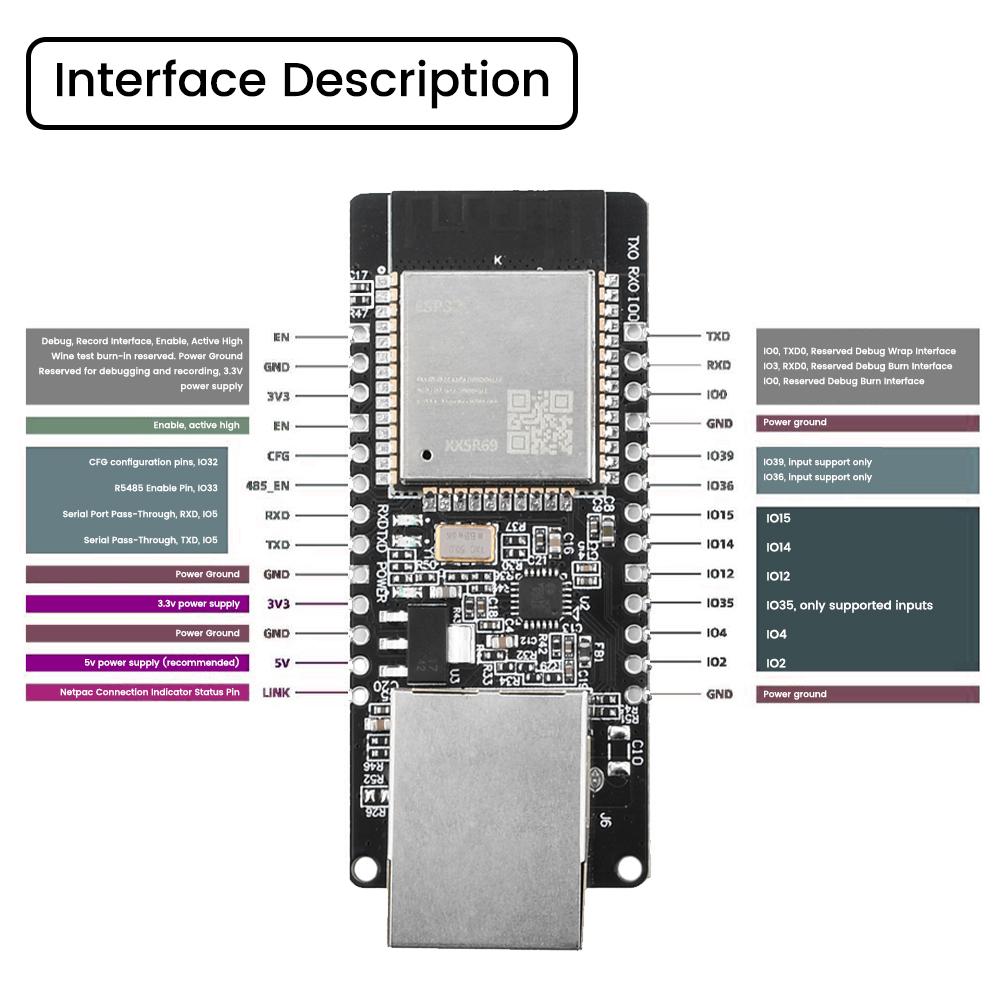

Instructions for use: Power on instructions: If using the DuPont cable method: find the 3V3 or 5V power input port, connect the corresponding voltage, and the indicator light (LED1) will light up, indicating successful power on. Indicator light description: LED1: Power indicator light, powered on normally, light on; LED3: Serial port indicator light, when RXD2 (IO5) has data flow, the light is on; LED4: Serial port indicator light, when TXD2 (IO17) has data flow, the light is on; 4.3 Instructions for Use Three usage methods, users can choose according to their needs: 1) Through hole (welding pin): connected using DuPont wire; 2) Through hole (welding pin): used on a breadboard; 3) Half solder pad: Users can directly solder modules onto their own boards.

Explanation of network port working indicator light Green light: Connection status indicator, green light on when correctly connected to the network Yellow light: Data indicator, flashing when the module receives or sends data, including the module receiving network broadcast packets

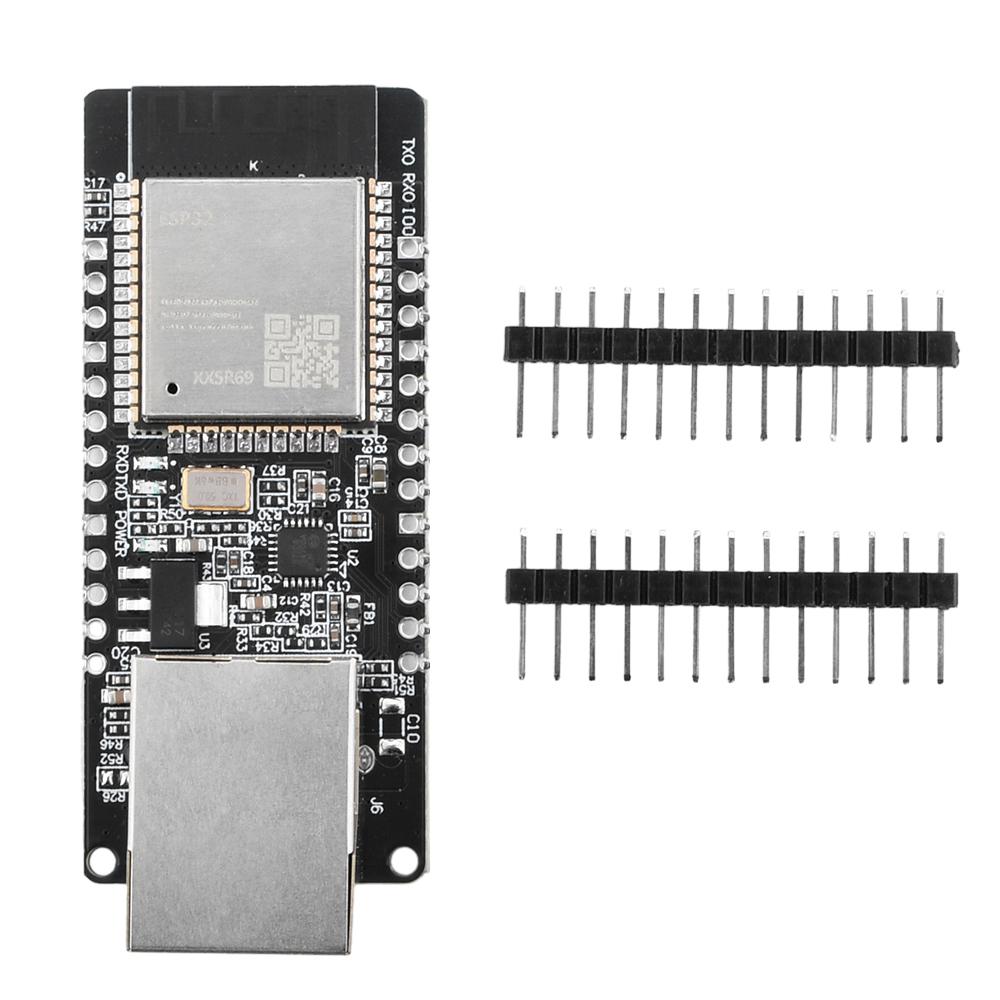

Package include: 1X module 2X pin arrangement (optional if not soldered/soldered) label:yes
