DC 20–96V PD 65W Buck Module, PD/QC 2.0 and 3.0 Dual USB Type-C Fast-Charging Adapter, Suitable for Apple, Huawei and Others

EAN Code : None High-concerned chemical : none is_d : Yes Output Current : 3.5A Output Frequency : Details page Model Number : DC 20-96V PD65W step-down module Type : DC/DC Converters Weight : Details page Size : Details page Output Type : SINGLE Brand Name : Gaqqee Origin : Mainland China Certification : CE,RoHS

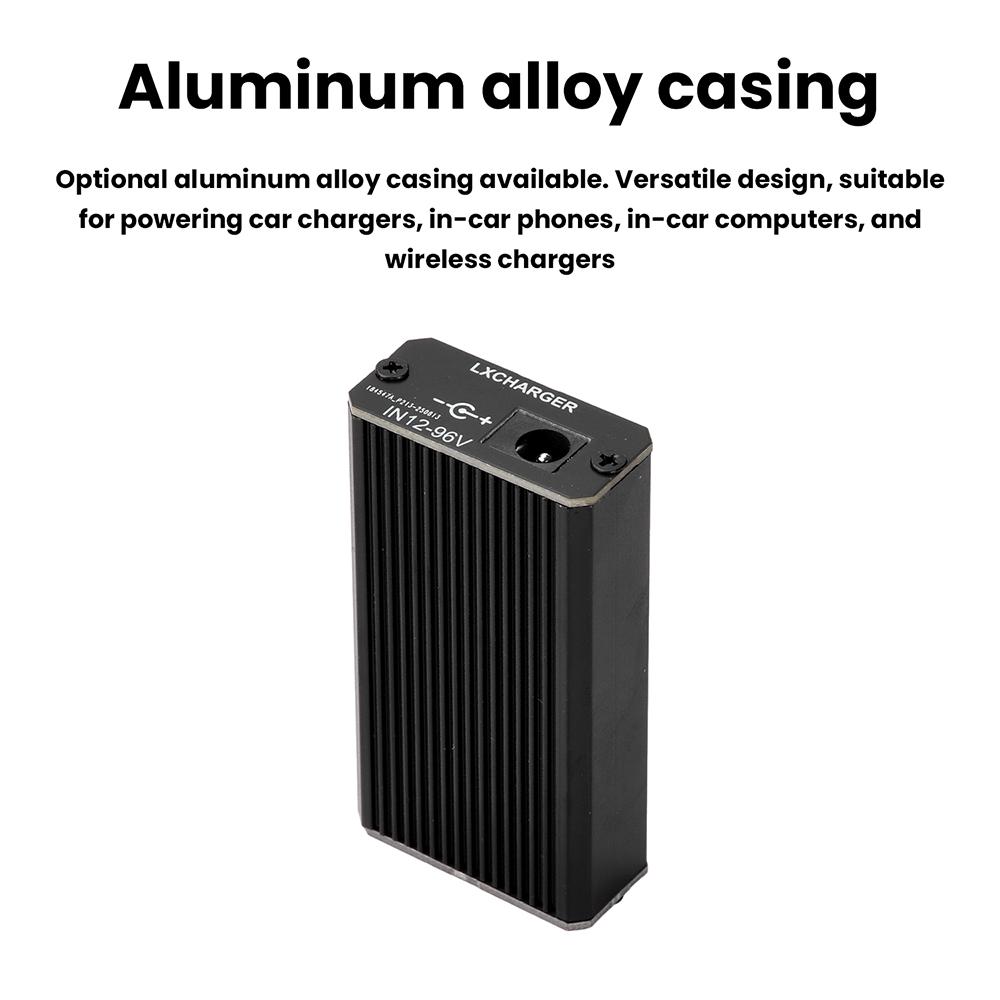

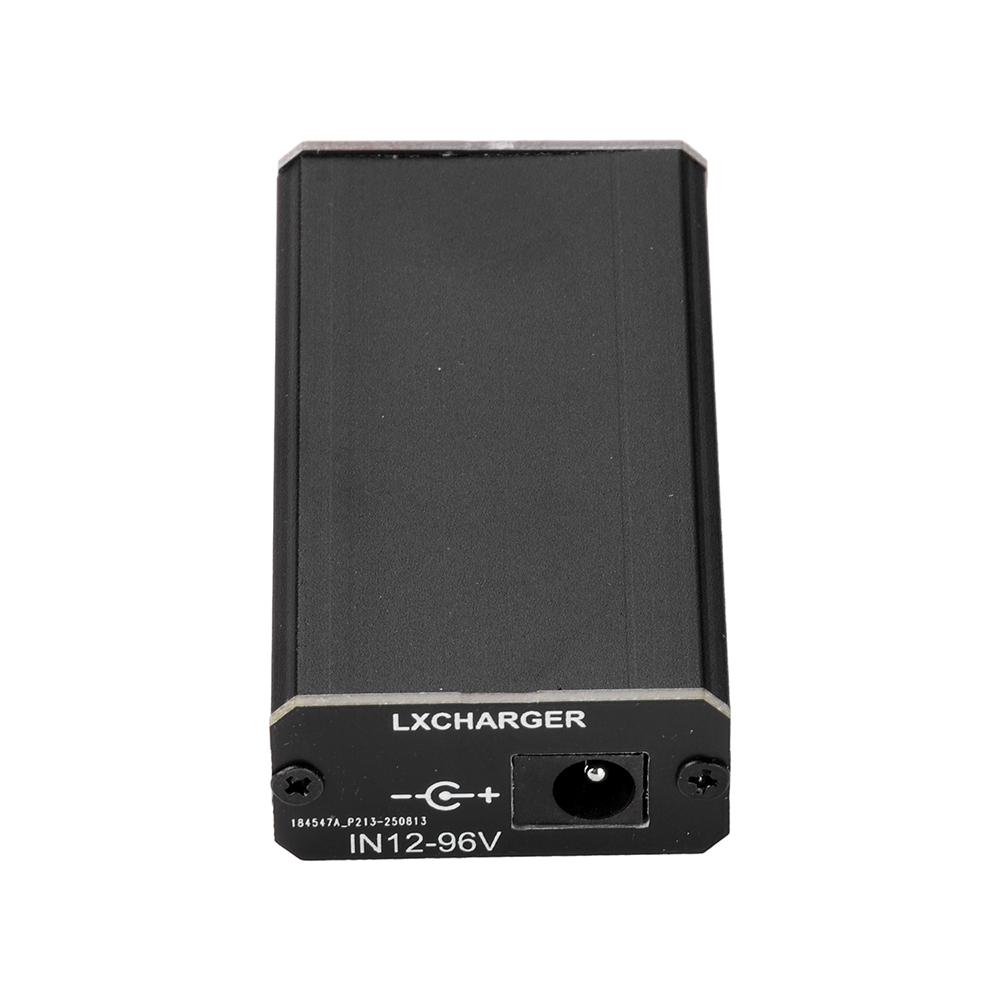

Product Features: 1. Considerable effort has been put into the design, materials and PCB manufacturing of this product, enabling the module to achieve impressive specifications and functionality within a very compact form factor; 2. A highly efficient, high-power step-down module featuring high-quality components and multiple layers of protection, ensuring safety and peace of mind; 3. Measuring just 61.9 mm × 29 mm with a board thickness of 9.5 mm, the module delivers high power output and low ripple within a compact form factor; 4. Given the module’s very compact size and limited heat dissipation area, heat generation during high-power output is to be expected; however, the use of high-quality materials ensures that heat will not affect the module’s life. 5. An optional aluminium alloy housing is available, making it versatile for powering a range of applications, including car chargers, in-car mobile phones, in-car computers and in-car wireless chargers.

Product Specifications: Input: DC 20–96 V Output: 5V 3.5A Standby current: 2mA Output: Both ports can be used simultaneously Supports multiple protocols Built-in over-temperature protection Output utilises solid-state capacitors Temperature range: -40°C to +85°C Supports QC 3.0+/3.0/2.0 protocols Supports Xiaomi CHARGE TURBO 27W protocol Supports Huawei FCP/SCP/HVSCP protocols Supports Samsung AFC 9V protocol Supports Apple 2.4A charging specification Supports PD 65W Fixed-voltage PDO: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A PPS1: 3.3–11V/3A PPS2: 3.3–21V/2.85A Module dimensions: 61.9 mm × 29 mm, board thickness 9.5 mm (no electronic components on the reverse side of the board; heat-dissipating materials may be attached to the reverse side) Matching housing dimensions: 16 × 33.8 × 66 mm (supplied without the XT30 connector module)

Main applications: Power supply for car chargers, in-car mobile phones, in-car computers and in-car wireless chargers

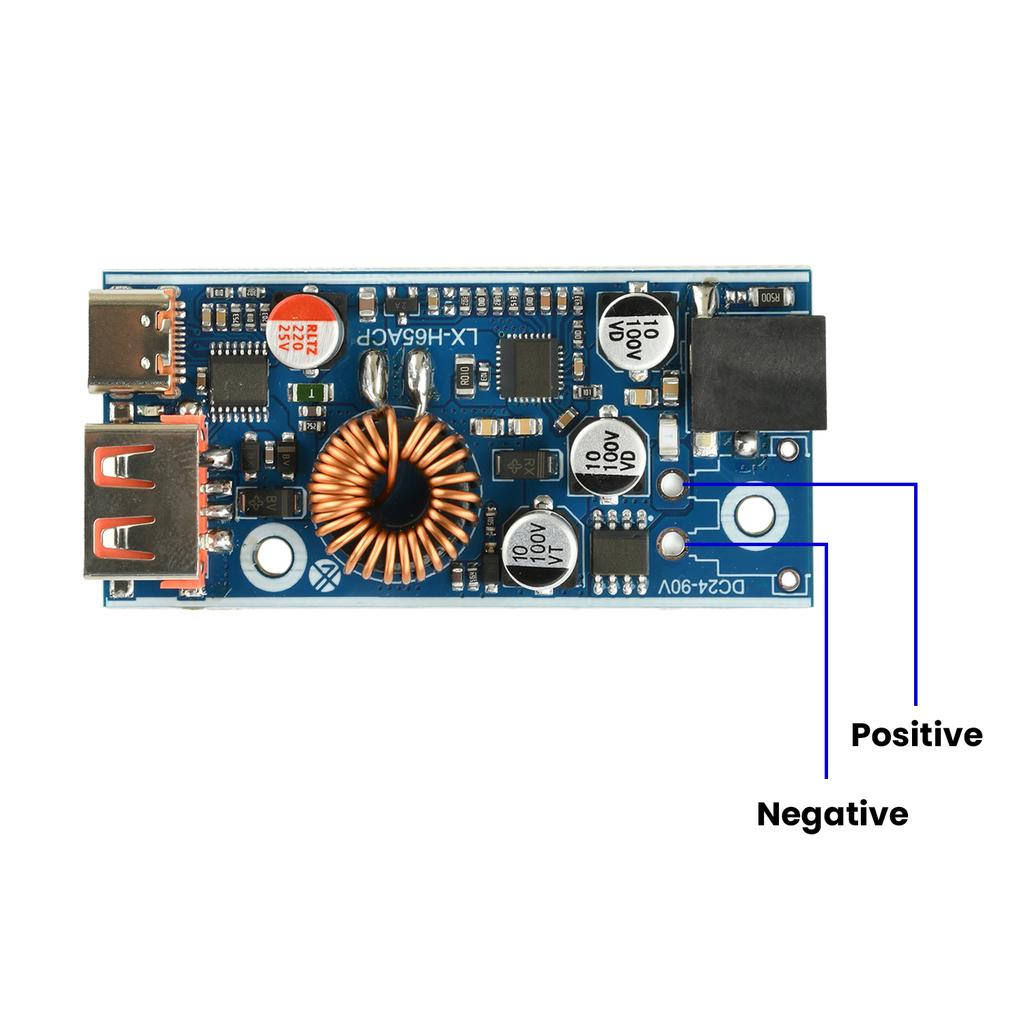

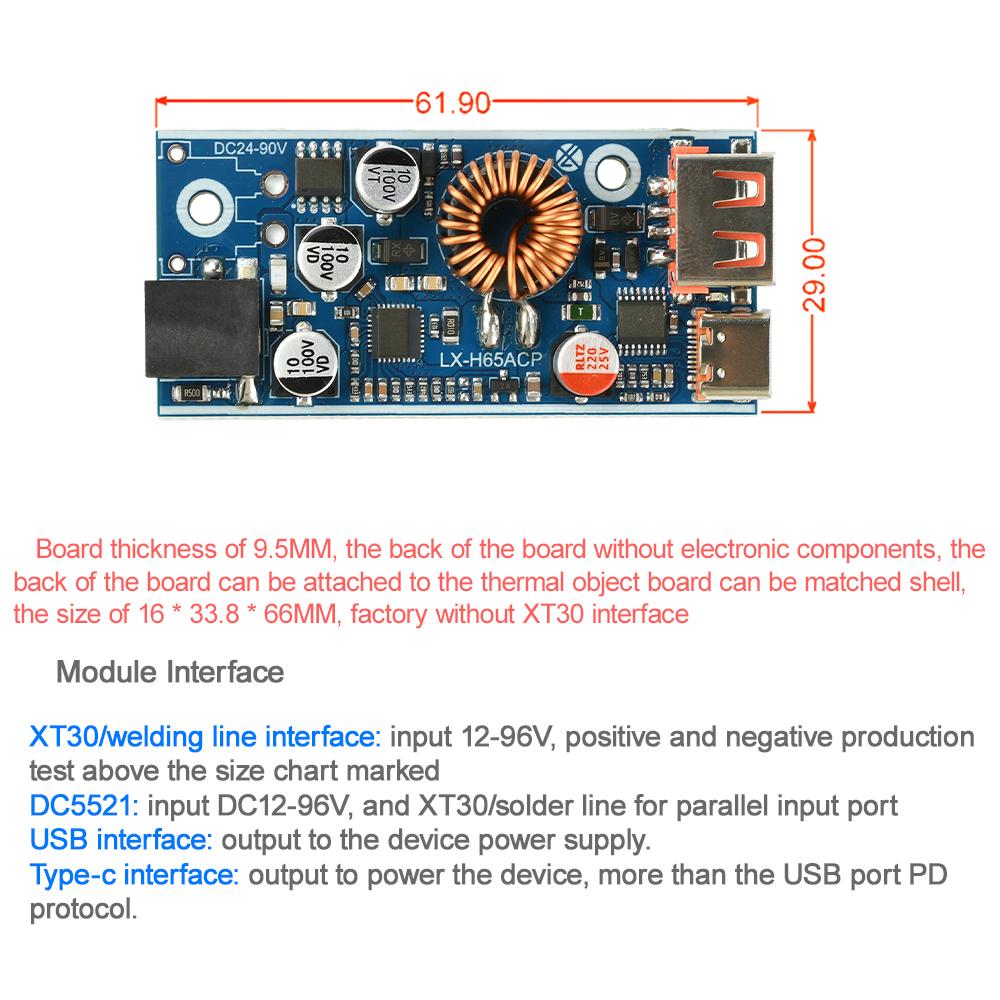

Connector Specifications: XT30/wire-welding connector: Input 20–96V; positive and negative terminals as indicated on the dimensional diagram (Note: The XT30 connector module is not included as standard) DC5521: Input DC 20–96V; this is a parallel input with the XT30/wire-welding connector USB connector: Outputs power to devices. Type-C port: Provides power to devices; supports the PD protocol in addition to the USB port.

Instructions for Use: ◆ When operating under the PD protocol at 20V, the product supports up to 65W; power output will be lower for other protocols and voltages, as the maximum current is limited. The current and power output vary depending on the protocol; it is the protocol that determines these values. Therefore, just because your mobile phone supports 65W or 100W charging does not mean this module will necessarily provide 65W when used to charge it—that is not the case. beginners, please bear this in mind. ◆ Many people ask whether it can be powered by solar energy or used in electric vehicles. All I can say is that, regardless of your power source, you must ensure the supply voltage and current are sufficient. As long as they fall within the specified parameters and remain stable, electricity is electricity, regardless of its source. If you are unsure of your power supply parameters, please exercise extreme caution before purchasing. ◆ Attention Huawei users! To use this module, you must use an original cable or a high-current cable that supports the SCP protocol. If you use a standard cable, the phone will not initiate fast charging; furthermore, as the phone has already established a handshake with the SCP protocol, it cannot establish a handshake with the older FCP protocol. (This is why, when using a standard cable with my module, fast charging does not work, whereas a cheaper module that only supports the FCP protocol does.) ◆ The wiring must not be too thin; ensure the cables can handle the corresponding current. ◆ The higher the power drawn by the module and the closer the current is to the maximum current, the greater the heat generated. Please ensure adequate heat dissipation during use. ◆ Should you encounter any issues during use, please contact customer and provide wiring diagrams, usage videos, etc., as requested; text-only information will not be accepted. ◆ Recommended voltage: 24–96V. All fast-charging modules generate heat; however, our modules produce relatively less heat compared to similar solutions. ◆ Minor variations in appearance between different product versions are normal and do not affect product performance.

Product List: Fast-charging module × 1
