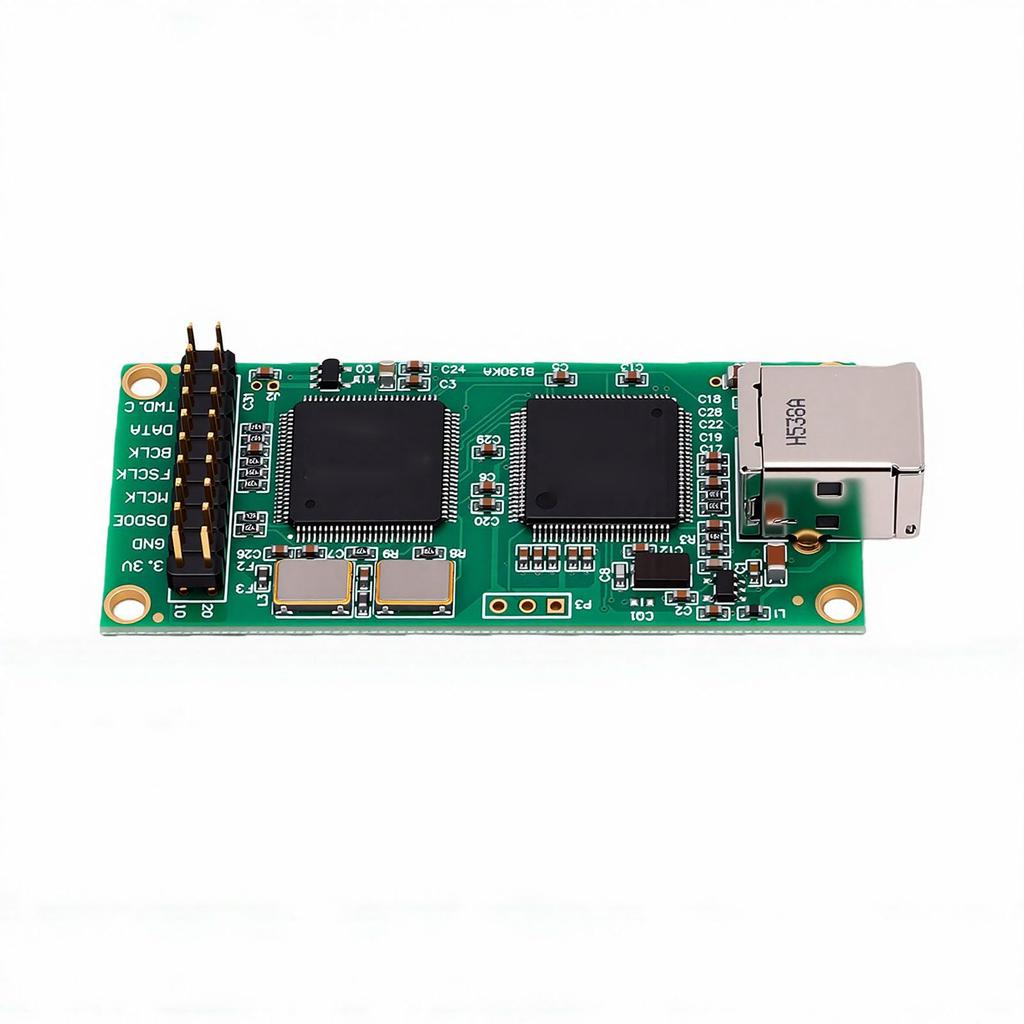

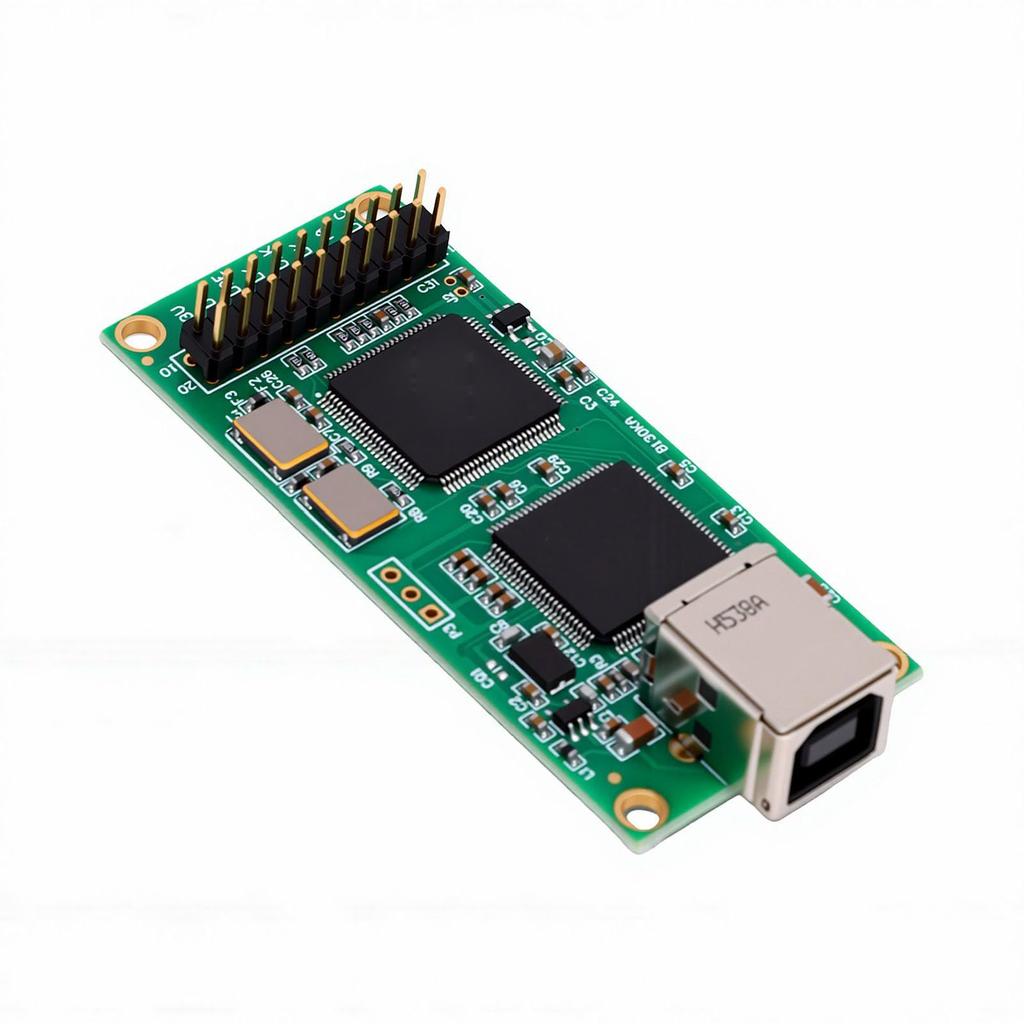

Acogedor Combo384 Module, USB DSD512 PCM384 I2S Board Module for OS X 10.6+ & Linux, SPDIF Output Audio Streamer for DIY DAC

Specifications: Item Type: Combo384 Module Material: PCB Sampling Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz Output Format: I2S 32-bit or DSD64/DSD128 (System support DSD256/DSD512) Oscillator: Two low-phase-noise crystal oscillators Usage: No drivers required. Supports OS X 10.6 and later and Linux systems (requires a UAC2-compliant kernel). KS/Wasabi/WDM drivers support versions 7, 8, and 10/11 (32-64 bit) are provided free of charge. Package List: 1 x Combo384 Module S/PDIF Chipset: This module is compatible with the WM8804 S/PDIF chipset, which has both transmitter and receiver functions. The S/PDIF output supports 192kHz. Combo384 Module: A variant of the classic Combo384 interface, used to connect the USB bus to PCM I2S/DSD devices and supporting the PCM S/PDIF option. Output Format: Suitable for sampling rates in the range of 44.1 to 384kHz. Supports 32-bit I2S, DSD64 (2.82MHz), or DSD128 (5.64MHz) output. For environmental compatibility, DSD256 (11.29MHz) and DSD512 (22.58MHz) can be supported using the ASIO driver. Receive Mode: When the dedicated pin 16 (D64) of the I2S output connector is grounded, it enters receive mode, and the I2S data of the input S/PDIF stream is redirected to the main connector. Transmission Mode: A dedicated 75Ω impedance connector outputs a capacitor-isolated digital signal. PCM data transmitted via USB can be simultaneously acquired through the I2S and S/PDIF output interfaces. When receiving PCM 384kHz or DSD streams, the S/PDIF output will be silent.
